Tie-in point

Industrial piping

Tie-in point with an elbow into the fixed pipe strings of the pipeline (dead legs)

Technology Benefits
1. Accurate fit with minimal pipe stress
2. High installation speed
3. Risks to miss = 0

1. Preparation to tie-in a bend into a technological piping spool

You need to cut out two sights from flat plywood.
The sight, made of plywood 14 – 20mm thick, must be at least 100mm longer than the diameter of the pipeline in width and twice + 100mm in length.

Tip – always check the straightness of the sight before using it.

2. Laying a bend on the pipeline dead pipe ends.

Lowering the bend on top of main pipe ends, at this point it is important for us:
choose the ideal bend position with a smaller fracture angle:

3. Baseline marking on technological pipeline

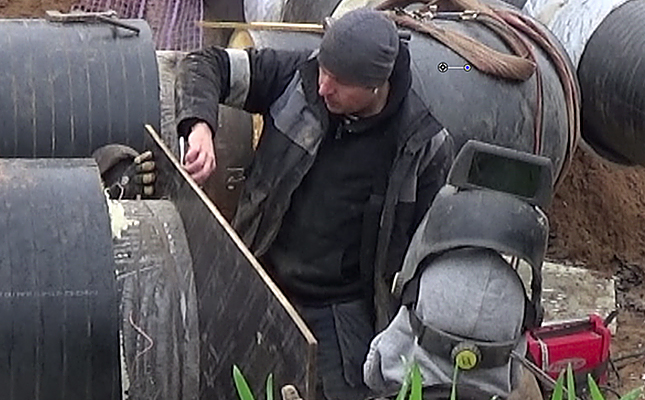

One apply plywood sights to both ends of the bend and can carefully transfer the baseline to the ends of the pipeline, but it is important not to rush to cut along the baseline.

4. How to make a golden joint and why not cut along the baseline?

The thing is that we are considering the case when the axes of the pipeline do not meet in the center of the bend, along one of the three planes or along all three.
In other words, the ends are not laid correctly and there is no way to move them.

Explanations:
Since we are lowering the bend from above in a vertical plane (top view), in this plane it does not matter to us what error is along the axes, it can be 5 degrees or even more.

5. Transferring the baseline to the location of the actual pipeline cut

In this example, you need to move the baseline (Baseline) by GAP distances, in the direction to the right, see the arrow (moving direction >>>)

6. Technology of transferring the baseline to the place of the actual cut.

You can use a plywood scope to transfer the actual cut baseline.

7. Fitting parts and cutting the pipeline.

After you can make cuts along the mixed baseline, and already begin to apply a bend to the pipe strings, you may find some minor errors that are leveled out as part of the locksmith fit.
It is important to understand that the bend must come into place in exactly the same spatial position as you installed it in paragraph 2 (Laying the bend on the pipe string) of this instruction. To do this, it is advisable not to remove the bend from the sling during the entire installation, or to make marks.

8. Tie-in and bend mounting of golden joints

After all the operations done, the last installation of the bend remains, it must be performed by a specialist installer.
